Overview

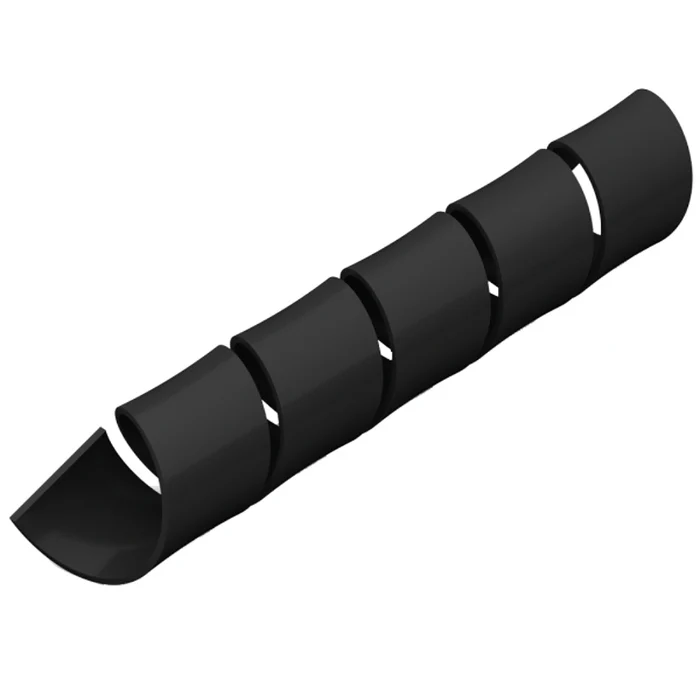

The Spiral Hose Guard, is a heavy-duty protective solution for hydraulic and pneumatic hoses. Manufactured from high-density polyethylene (HDPE), this spiral wrap offers exceptional durability and flexibility while protecting hoses from abrasion, sharp edges, poor maintenance, or harsh environments. Widely used in mining, construction, transportation, agriculture, and more, it helps prevent hydraulic hose bursts and extends service life. It also serves as an effective bundling solution for multiple hose lines.
Key Benefits
- Robust HDPE construction for heavy-duty use
- Highly flexible spiral design for easy installation
- Protects from abrasion, wear, and bursting risk
- Bundles hoses and cables for safer management
- UV, chemical, and impact resistant
- Prevents downtime due to hose failure
- Suitable for extreme temperatures: -40°C to 138°C
- Bevelled edges for smooth handling
- Available in black, FRAS, and NightGlow variants
Applications
- Hydraulic hose protection in mining & drilling rigs
- Air hose safety for trucks and logistics
- Bundling cables in construction equipment
- Scuba gear and marine hose shielding
- Landscaping, agriculture and fluid systems
Product Specifications
| Product Code | ID (mm) | OD (mm) | Wall Thickness (mm) | Pitch | Meters/Box |
|---|---|---|---|---|---|
| V12SHP | 9.5 | 12.5 | 1.5 | 10 | 20/50 |
| V16SHP | 12.5 | 16 | 1.75 | 12 | 20/50 |
| V20SHP | 16 | 20 | 2 | 14.5 | 20/50 |
| V25SHP | 21 | 25 | 2 | 21 | 20/50 |
| V32SHP | 27 | 32 | 2.5 | 24 | 20/50 |
| V40SHP | 34 | 40 | 3 | 30 | 20/50 |
| V50SHP | 44 | 50 | 3 | 35 | 20/50 |
| V63SHP | 55 | 63 | 3.5 | 40 | 20 |
| V75SHP | 66 | 75 | 4 | 40 | 20 |
| V90SHP | 79 | 90 | 4.5 | 45 | 20 |
| V110SHP | 99 | 110 | 5.5 | 55 | 12 |
| V125SHP | 114 | 125 | 5.5 | 55 | 12 |
| V140SHP | 129 | 140 | 5.5 | 55 | 8 |
| V160SHP | 148 | 160 | 6 | 60 | 6 |
